Smart Mirror loona


One Mirror,

Makes Two Differences

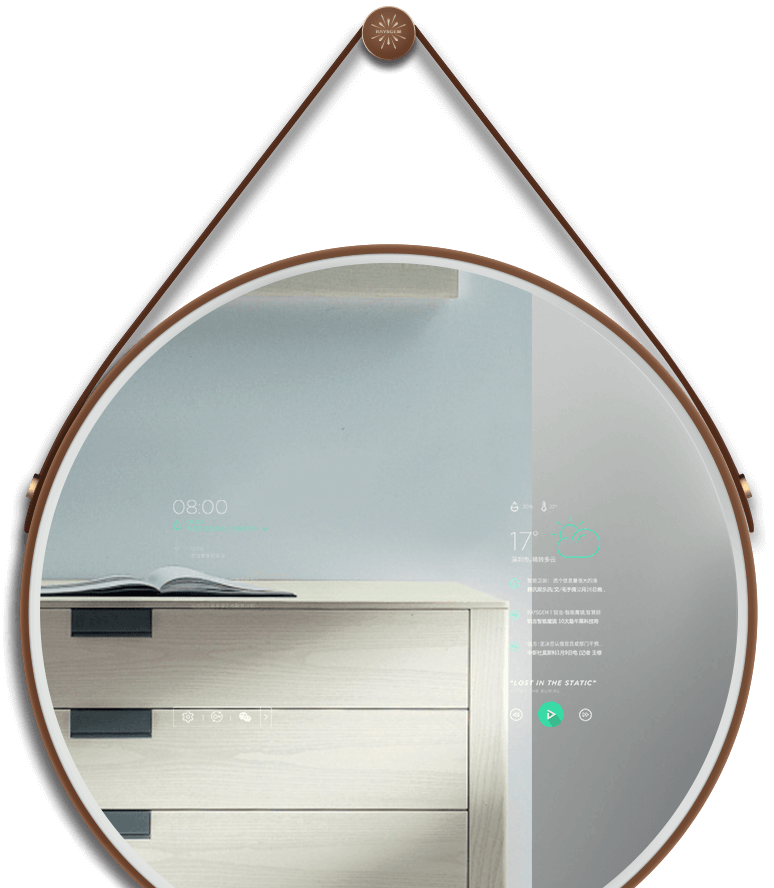

When Loona rests.

She is an ordinary mirror,

You can make up and dress with her.

When Loona was awakened,

She is intelligent center,

Become a assistant in your life.



Loona is a new generation of integrated intelligent system products, you can link the smart home appliances, through touch or voice

You can easily control the home of air conditioning, refrigerators, water heaters, etc., in the overall function to achieve more possibilities.


Stunning appearance Ingenuity quality

Loona with aluminum alloy, every detail with strictly control,

Beautiful appearance of the moon is more amazing.


Walnut pri- colors

Dumb G color

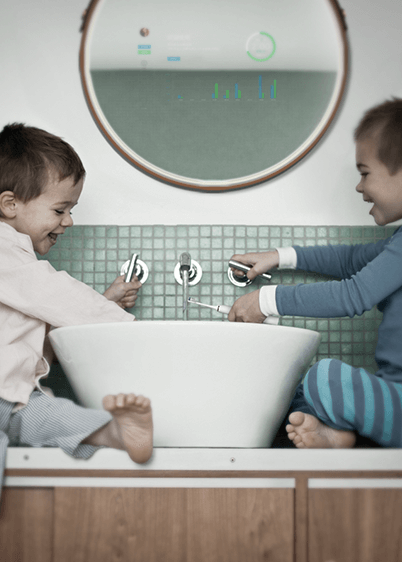

Health Intimate care

Loona support meter of skin、blood sugar,pressure、Scales、toothbrush、Sleep band and Smart cup linkage, long-term collection and monitoring of user health data and customized personalized health services for users.


Intelligent linkage

Loona is equipped with "smart voice control", from selected music, watching video, reading news and to control of home appliances can achieve full voice control.

Loona can contact the home of intelligent devices, through touch or voice can easily control the lights , Music, air, hot water, access control and so on.

In Loona, hot news, weather forecasts, road conditions, schedules and other information , it can according to the actual situation for you real-time display dress index and pay attention to matters.

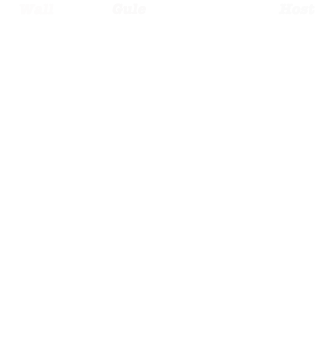

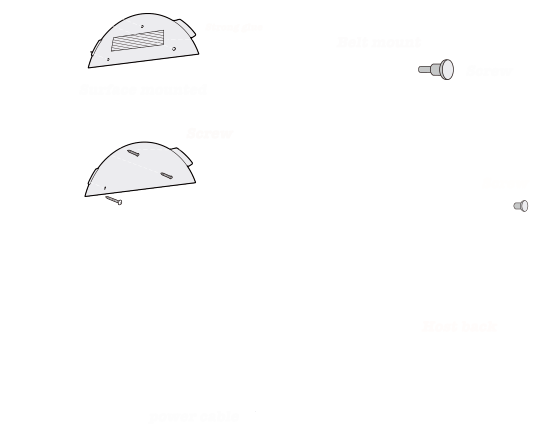

  • Belt hanging
  • Surface mount (without belt)
  • Wall mount (without belt)


Installation to protect the host, to avoid causing the product scratches or damage.

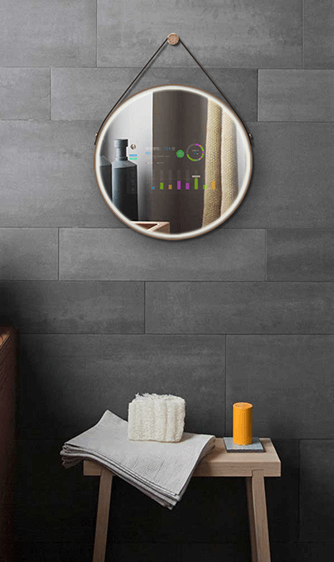

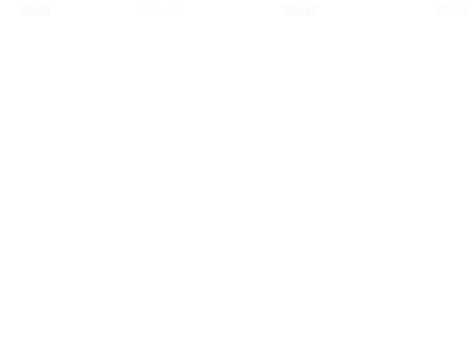

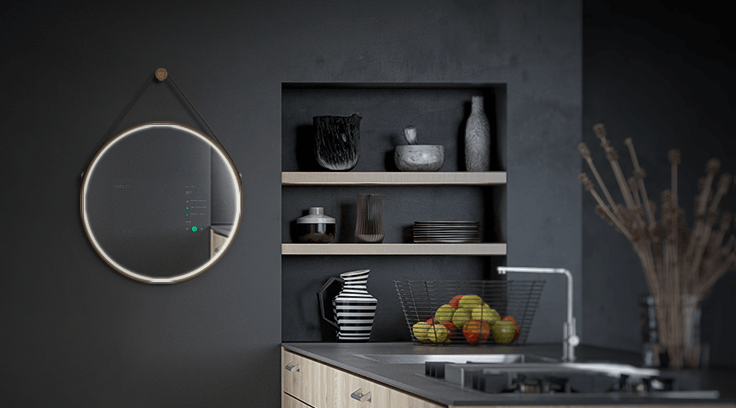

Belt Mount

Surface Mount

Wall Mount


Size(mm) loonaSmart Mirror

  • Front view

  • Side view

  • Back view

  • Top view



  • CPU
  • GPU
  • Rockchip 3288
  • Quad-core Cortex A17 1.8GHz
  • Mali-T764
  • Graphic
  • Support OPENGL ES1.1/2.0/3.0
  • OPEN VG1.1,OPEMCL,Directx11
  • Built-in high-performance 2D / 3D acceleration hardware
  • Support 4K, H265 hard decoding 10bits color depth
  • Support 1080P multi-format video decoding 1080P video decoding
  • Supports H264 VP8 and MVC image enhancement processing
  • RAM
  • ROM
  • WIFI
  • Bluetooth
  • operating system
  • touch screen
  • speaker
  • switch
  • Distance sensing
  • ZigBee Module
  • 2GB
  • 8GB(64G Optional)
  • 2.4G/5G Dual 802 11a/b/g/n
  • Bluetooth4.0
  • Android 5.1 X
  • support(10 point)
  • 2x2watt
  • Yes
  • Yes(20-80cm)
  • Optional
  • interface
  • DCIN 1
  • OTG 1
  • USB 1

LCD panel

  • Display size
  • Display type
  • Display proportion
  • Resolution
  • brightness
  • Contrast
  • Viewing angle
  • Response time
  • Working life
  • 13.3°
  • IPS
  • 16.9
  • 1920XRGBX1080
  • 350cd/㎡
  • 1000:1(
  • 178°(H)X178°(V)
  • 16ms
  • ≥15000Hour


  • Power input (built-in switching power supply)
  • power
  • Standby consumption
  • DC 12V 3A
  • ≤ 36W
  • ≤ 0.5W

Appearance / material / artwork

  • Host appearance
  • Body thickness
  • Panel glass
  • Material / artwork
  • waterproof level
  • Φ500mm
  • 36mm
  • Imported (non-conductive) diamond-grade nano-coated glass
  • Aluminum alloy center, plastic shell and so on
  • IP65

Work storage temperature and humidity

  • Operating temperature and humidity range
  • Storage temperature and humidity range
  • 0-50℃/20-90%RH
  • -20-60℃/5-90%RH
